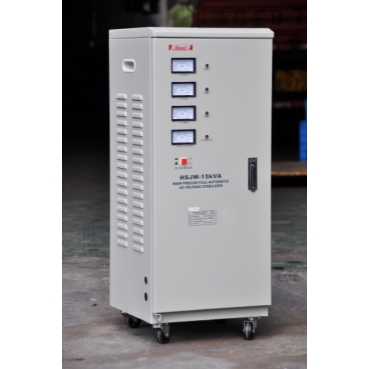

HSJW

Features

The voltage stabilizer is applied to protect load being damaged under unstable or fluctuated power grids. We can provide special offers according to specified applications.

Specifications
- Output Voltage: Accuracy of stabilized voltage: 380 V (or 400 V) ± 4 %
- Range of input voltage: 260..430 V (1.5 ~ 30 kVA); 304..456 V (45 ~ 60 kVA)
- Capacity range: 1.5 ~ 60 KVA
- Customized input range: 250..423 V
- Rated Frequency: 50/60 Hz
- Standard function: Output overvoltage protection, short circuit protection
- Extended function (optional): Fan, Input undervoltage protection, Output undervoltage protection, temperature rise protection, time delay, by-pass, overload protection, phase failure protection, Surge protector
- Voltage-regulating speed: < 1 s (variation of input voltage is 10 %)
- Temperature rise: < 80 K (with rated load)
- Display Mode: Dial Meter (Panel Meter) or LED or LCD
- Insulation Resistance: ≥ 5 MΩ
- Withstand Voltage: 1500 V/1 min
- Efficiency: > 92 %
- Ambient Temperature: - 5 ℃ ~ + 45 ℃
- Altitude: ≤ 2000 m
- Relative humidity: 90 %
- Standard: EN 61000-6-2/ EN 61000-6-4/EN 61558-1

Benefits

RELIABLE AND DURABLE
- Smooth stabilization
- Stable and continuous voltage
- High accuracy

Applications

AN EXCELLENT CHOICE FOR ALL STANDARD APPLICATIONS, INCLUDING:
​- Industrial equipment
- R&D equipment
- Motors

ENSURES COMPLIANCE WITH INTERNATIONAL STANDARDS:
- EN 61000-6-2/ EN 61000-6-4/EN 61558-1
