Features

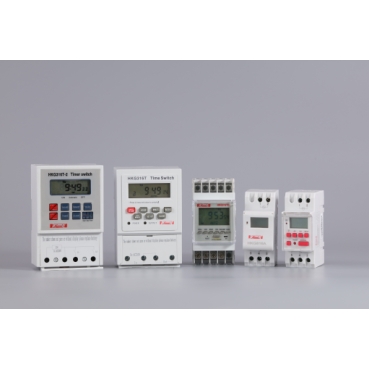

Time control components in automatic control circuit according to the scheduled time to turn on or off the circuit.
Specifications
- Control time:1 min ≤ t ≤ 168 h (time is controlled in a daily cycle or a weekly cycle);
- Rated Frequency: 50 Hz;
- Utilization mode: AC-15: 240V/3A 400V/1.9A;
- Control power: ≤ 6 kW;
- Rated control voltage: 230/380/400 V AC;
- Rated thermal current: 10 A;
- Accuracy: 2 s/day;
- Display model: Digital LED display;
- Time-set mode: Digital Keyswitch setting;
- Battery: Inner alkaline/rechargeable battery;
- Install mode: Standard din-rail (35 mm) mounted;
- Ambient Temperature: - 5..40 ℃;
- Altitude: ≤ 2000 m;
- Standard: IEC 60947-5-1
Applications
AN EXCELLENT CHOICE FOR ALL STANDARD APPLICATIONS, INCLUDING:
- Household appliances, e.g. washing machines,
- Places where require frequent switch-on and off, e.g. cyclic adding oxygen in the fishbowl, intermittent sprinkling irrigation in the lawn;
- Control the duration of the power-on time: electro mobile, charging for mobile phone battery.
ENSURES COMPLIANCE WITH INTERNATIONAL STANDARDS:
- IEC 60947-5-1
