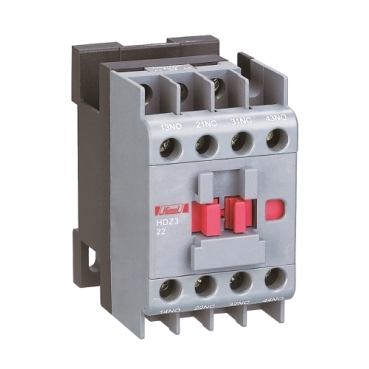

HDZ3

3-pole contactor relay used in a control-loop circuit

A contactor type relay, which has the relay working principle. It is used for making and breaking the control circuit and its corresponding accessories are also in conformity with HDC3

SALES SUPPORT CONTACT US
93446501170
|      1 - 12 of 100 products

Features

The contactor relay HDZ3 is used for making and breaking the control circuit to realize customer requirements.



Specifications

- Rated conventional thermal current Ith: 10 A

- Pole: 3-pole

- Rated operating current: AC-15 380 V: 0.95 A

DC-13 220 V: 0.15 A

- Rated insulation voltage: 690 V

- Electrical durabilities: 110*10000 times

- Mechanical durabilities: 1100*10000 times

- Operating frequency: 1200 times/hour

- Rated operating frequency: 50 Hz, 50/60 Hz

- Coil voltage: 24...440 V

- Range of coil operating voltage: 85 %...110 % Us

- Auxiliary contact: 2 NO + 2 NC, 3 NO + 1 NC, 4 NO, 1 NO + 3 NC, 4 NC

- Certificate: CE

Applications

AN EXCELLENT CHOICE FOR ALL STANDARD APPLICATIONS, INCLUDING:

​- Control circuit



ENSURES COMPLIANCE WITH INTERNATIONAL STANDARDS: ​

- IEC/EN 60947-5-1
