Features

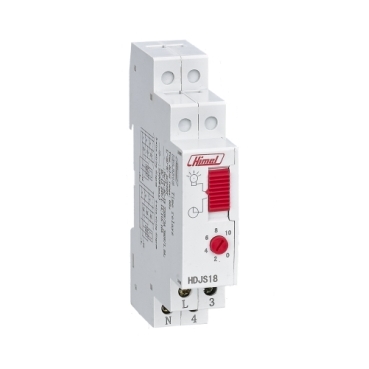

HDJS18 Time Relay provides:
1. Switch-off Delay
2. Switch-on Delay
Specifications
- Rated conventional thermal current Ith: 10 A
- AC-15: Ue: 380/240 V, Ie: 1.9/3 A
- DC-13: Ue: 24 V, Ie: 1.1 A
- Control voltage Us: AC: 220 V, 110 V (customized), 380 V (customized); AC/DC: 24 V
- Repetitive error: ≤ 5 %
- Time delay: 5 s, 10 s, 30 s, 60 s, 120 s, 180 s, 360 s, 480 s
- Mechanical durability: ≥ 1 million times
- Electrical durability: ≥ 100 thousand times
- Ambient temperature: - 5 ℃ ~ + 40 ℃
- Altitude: ≤ 2000 m
- Installation category: II
- Pollution class: 3
- Standard: IEC 60947-5
Benefits
RELIABLE WITH REASONABLE MARKETING POSITION
1. Small size;
2. Elegant appearance;
3. High accuracy of time delay;
4. High capacity of contacts;
5. Strong anti-interference ability;
6. Easy for installation.
Applications
AN EXCELLENT CHOICE FOR ALL STANDARD APPLICATIONS, INCLUDING:
- Staircase lamps on automatic switch-off control according to the scheduled time.
ENSURES COMPLIANCE WITH INTERNATIONAL STANDARDS:
- IEC 60947-5
