Features

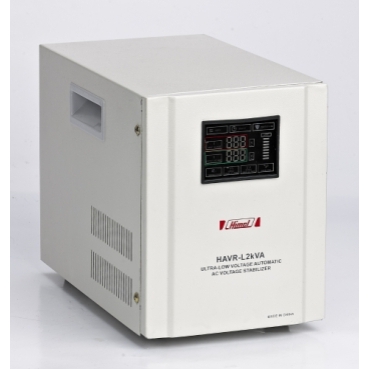

The voltage stabilizer is applied to protect load being damaged under unstable or fluctuated power grids. We can provide special offers according to specified applications.
Specifications
- Output Voltage: Accuracy of stabilized voltage: 220 V ± 8 %; 110 V ± 10 % (only when capacity is equal to or less than 5 kVA)
- Range of input voltage: 85 ~ 250 V
- Capacity range: 0.5 ~ 10 KVA
- Customized input range: 110..250 V or 140..250 V
- Rated Frequency: 50/60 Hz
- Standard function: Output undervoltage protection, Output overvoltage protection, overload protection, short circuit protection, temperature rise protection, time delay
- Extended function (optional): By-pass, Fan, Input undervoltage protection
- Voltage-regulating speed: < 10 ms
- Temperature rise: < 75 K (with rated load)
- Display Mode: LED
- Insulation Resistance: ≥ 5 MΩ
- Efficiency: > 90 %
- Ambient Temperature: - 5 ℃ ~ + 45 ℃
- Altitude: ≤ 2000 m
- Relative humidity: 90 %
- Standard: EN61000-6-2/ EN61000-6-4/EN61558-1
Benefits
RELIABLE WITH REASONABLE MARKETING POSITION
- Fast voltage regulation
- Cost effective
Applications
AN EXCELLENT CHOICE FOR ALL STANDARD APPLICATIONS, INCLUDING:
- Household appliances
- Office devices
- Small motors
ENSURES COMPLIANCE WITH INTERNATIONAL STANDARD:
- EN61000-6-2/ EN61000-6-4/EN61558-1
English
0.19 MB
08/06/2020
English
1.22 MB
29/11/2021
English
0.05 MB
01/09/2021
| Language | Format | Size | Date | |
|---|---|---|---|---|
| User guide | ||||
English |
0.19 MB |
08/06/2020 |
||
English |
1.22 MB |
29/11/2021 |
||
| Certificate | ||||
English |
0.05 MB |
01/09/2021 |
||
Servo motor type & Relay type
Relay type: fast voltage regulation to meet frequent voltage changes
Single-phase: 85-250V
Three-phase: 250-423V
By-pass, temperature rise protection, input undervoltage / overvoltage protection, surge protection, time delay, fan, phase sequence (for three-phase only)
HTND: 0.5-30KVA
HTND2 & HTND3: 1-30KVA
HSVC: 3-10KVA
HAVRL: 0.5-10KVA
HAVRB: 1-12KVA
HSJW: 1.5-60KVA
HSBW: 10-2000KVA
Differentiations are in the following:
(1) Accuracy
- Servo motor type is +/-4%
- Relay type is +/-8%
(2) Voltage regulation speed
- Servo motor type: ?1s
- Relay type: ?10ms
(3) Component for regulating voltage
- Servo motor type: carbon brush
- Relay type: relay
(4) Capacity
- Servo motor type: up to 30KVA for single-phase, and up to 2000KVA for three-phase
- Relay type: up to 12KVA for single-phase, and not available for three-phase"
