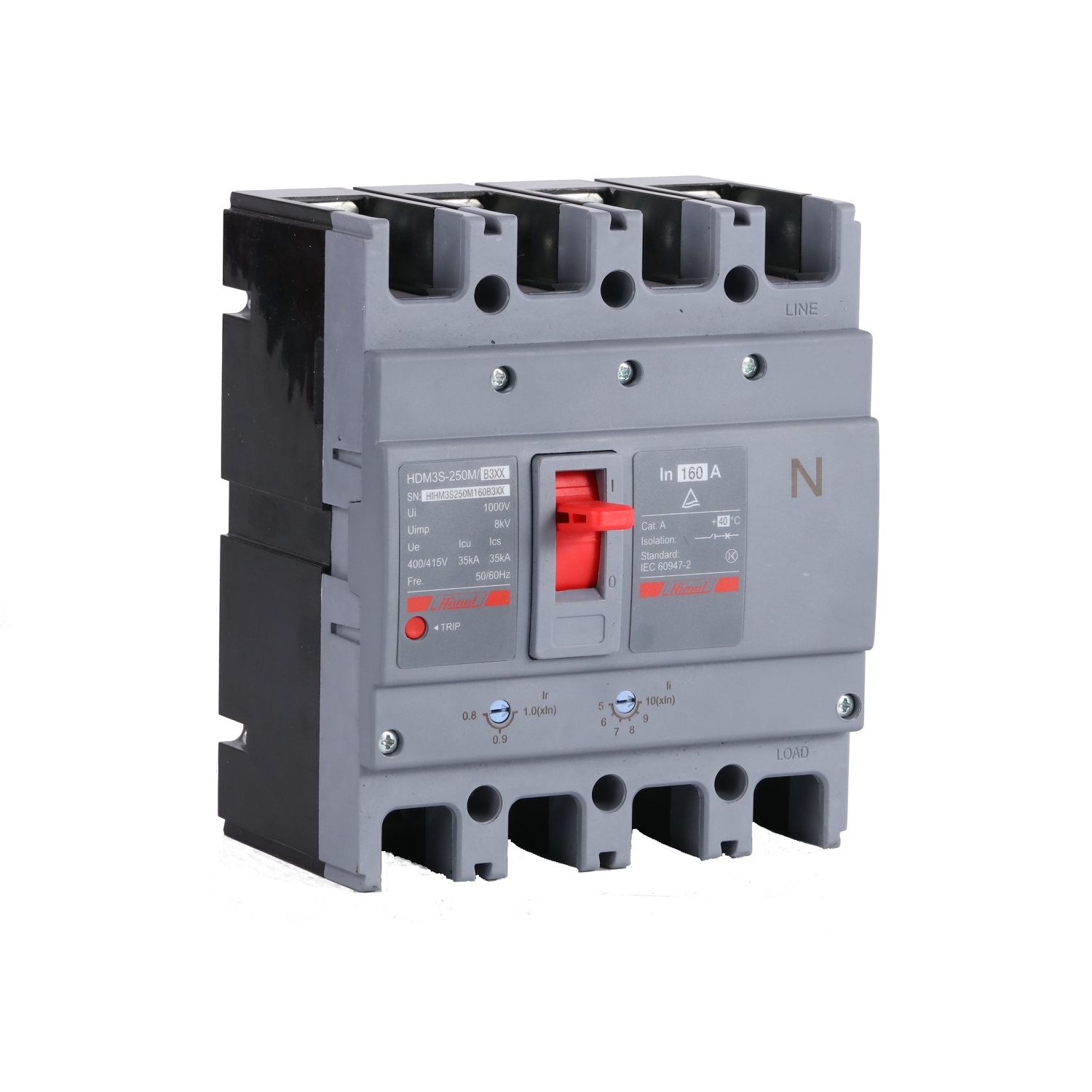

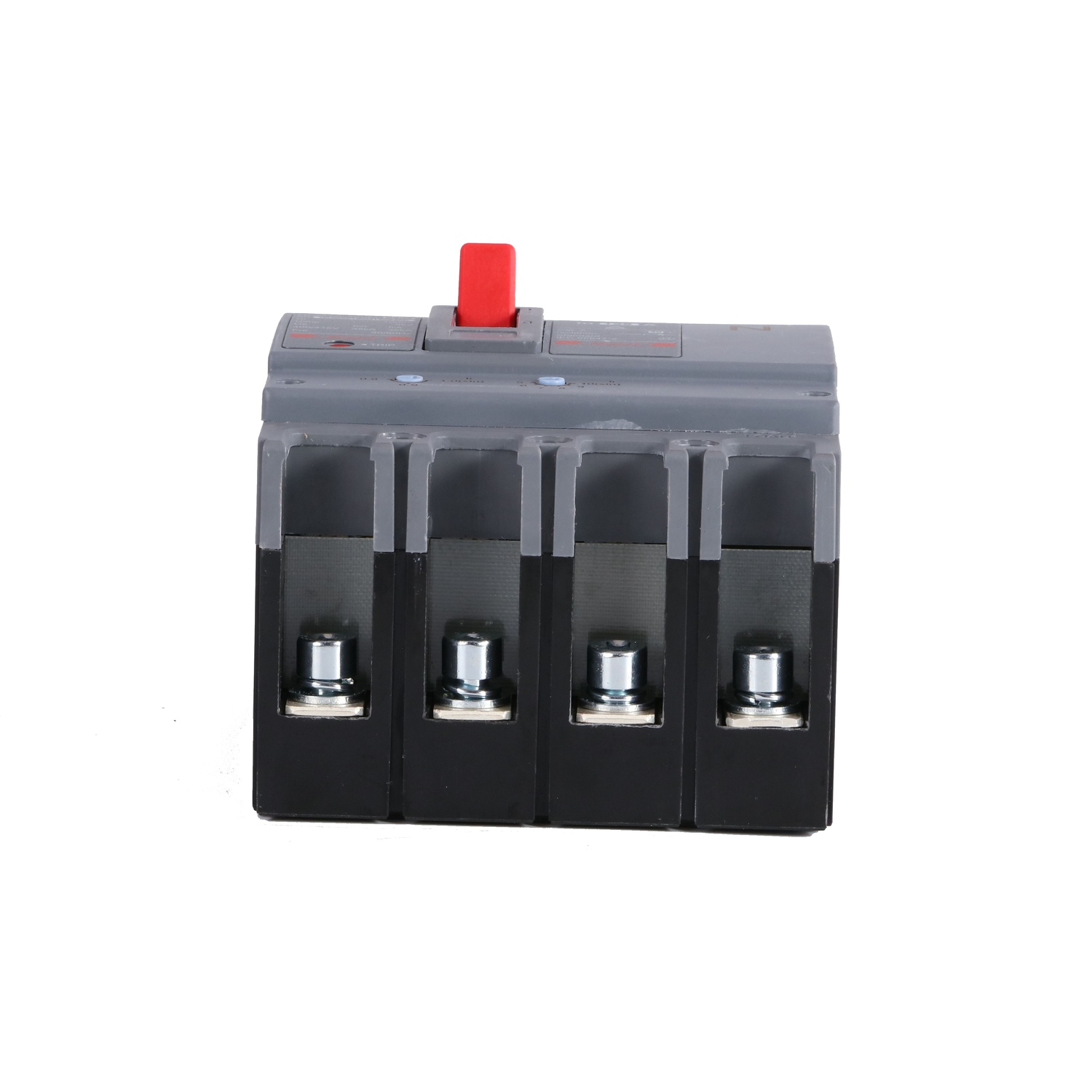

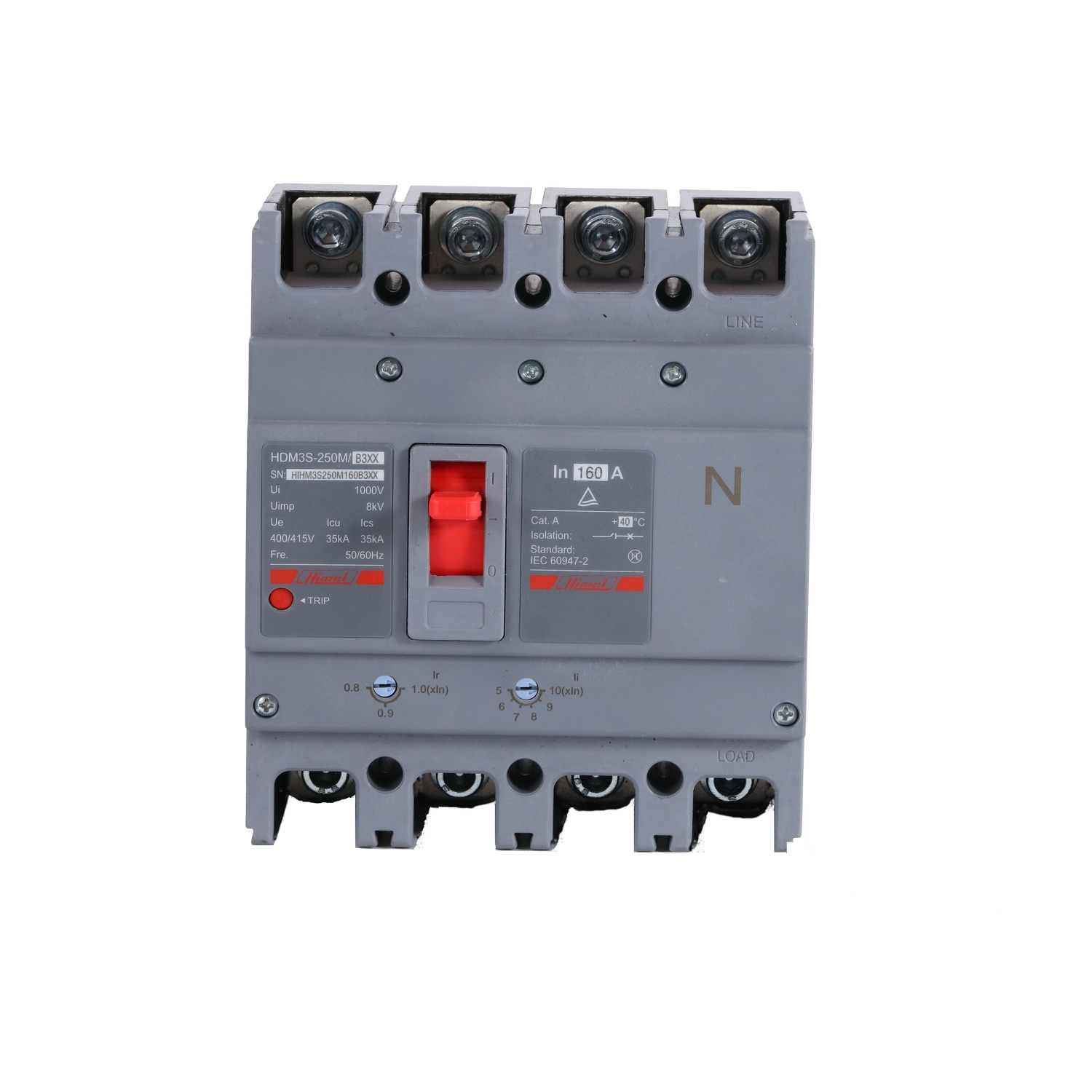

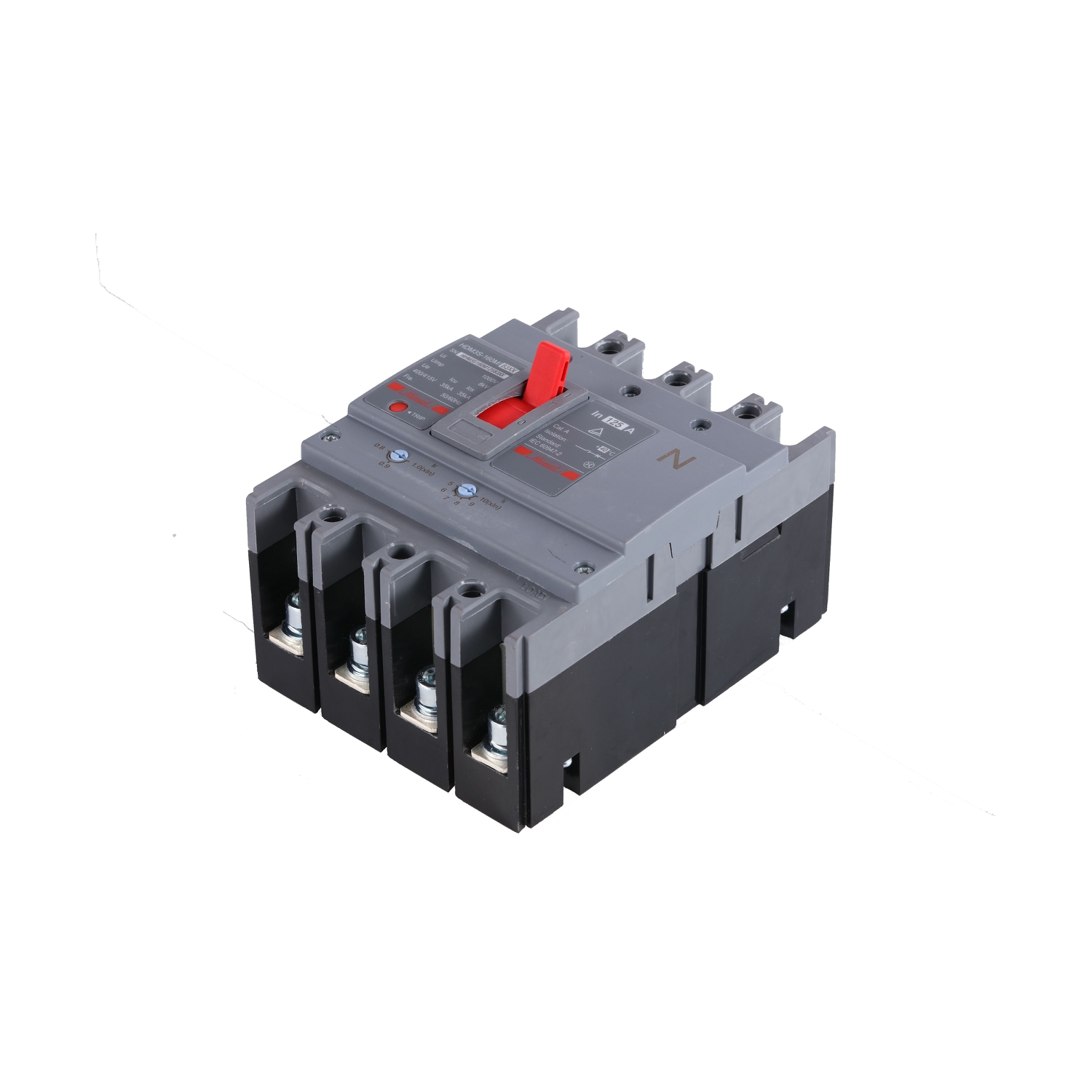

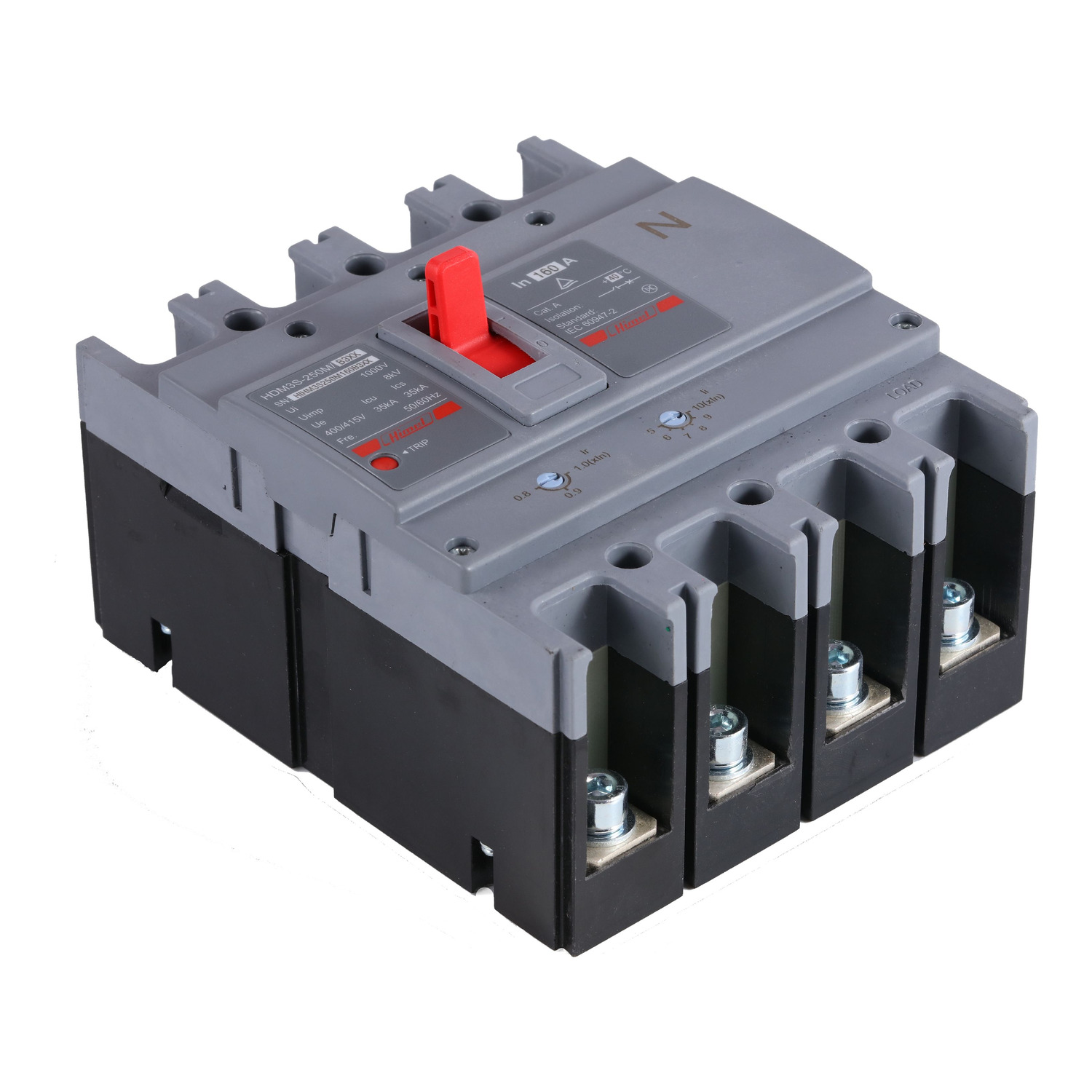

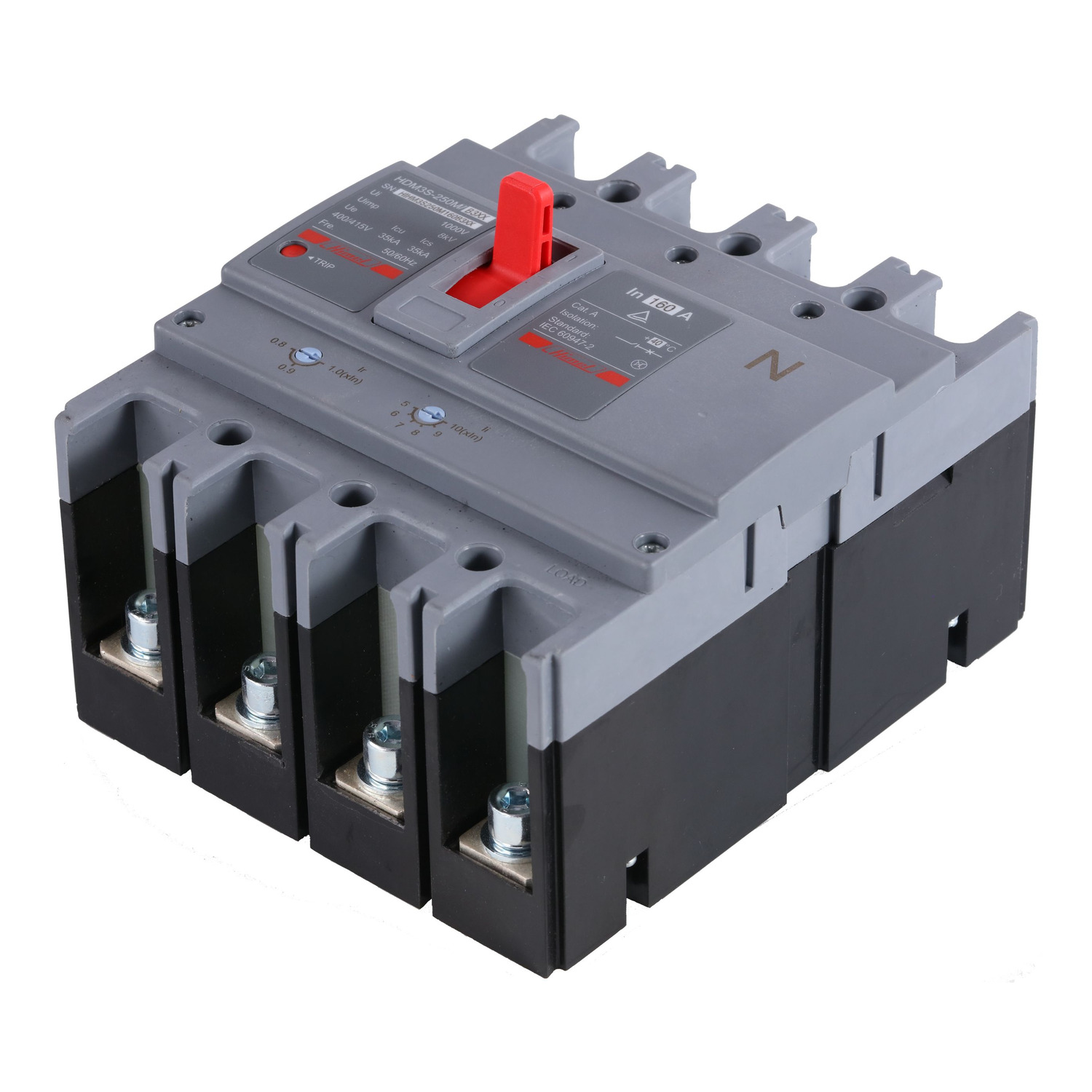

HDM3S250M16033XX
Molded case circuit breaker, HDM3S, 250M, 160A 3P, TM, adjustable, 40℃
Main
Range of product
HDM3S
Product or component type
Enclosed moulded case circuit breaker
Frame size
250AF
Suitability for isolation
Yes
Trip unit technology
Thermal-magnetic
Device application
Power distribution protection
Voltage release type
Shunt trip release
Undervoltage release
Undervoltage release
Provided equipment
alarm
motor mechanism
handle
terminal extension
interphase barriers
MN or MX voltage release
motor mechanism
handle
terminal extension
interphase barriers
MN or MX voltage release
Complementary
Poles description
3P
[In] rated current
160 A
[Ue] rated operational voltage
400/415 V
Network type
AC
Network frequency
50/60 Hz
Electrical durability
1000 cycles
Mechanical durability
7000 cycles
[Uimp] rated impulse withstand voltage
8.0 kV
[Ics] rated service breaking capacity
35 kA at 400 V
Rated breaking capacity
35 kA at 400 V
[Ui] rated insulation voltage
1000 V
Clamping connection capacity
125 mm²
Utilisation category
Category A
Height
165 mm
Width
105 mm
Depth
116 mm
Environment
IP degree of protection
IP20
Installation category
III
Pollution degree
3
Ambient air temperature for operation
-5…40 °C
Ambient air temperature for storage
-20…70 °C
Operating altitude
0...2000 m
Standards
IEC 60947-2
Product certifications
TÜV
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
