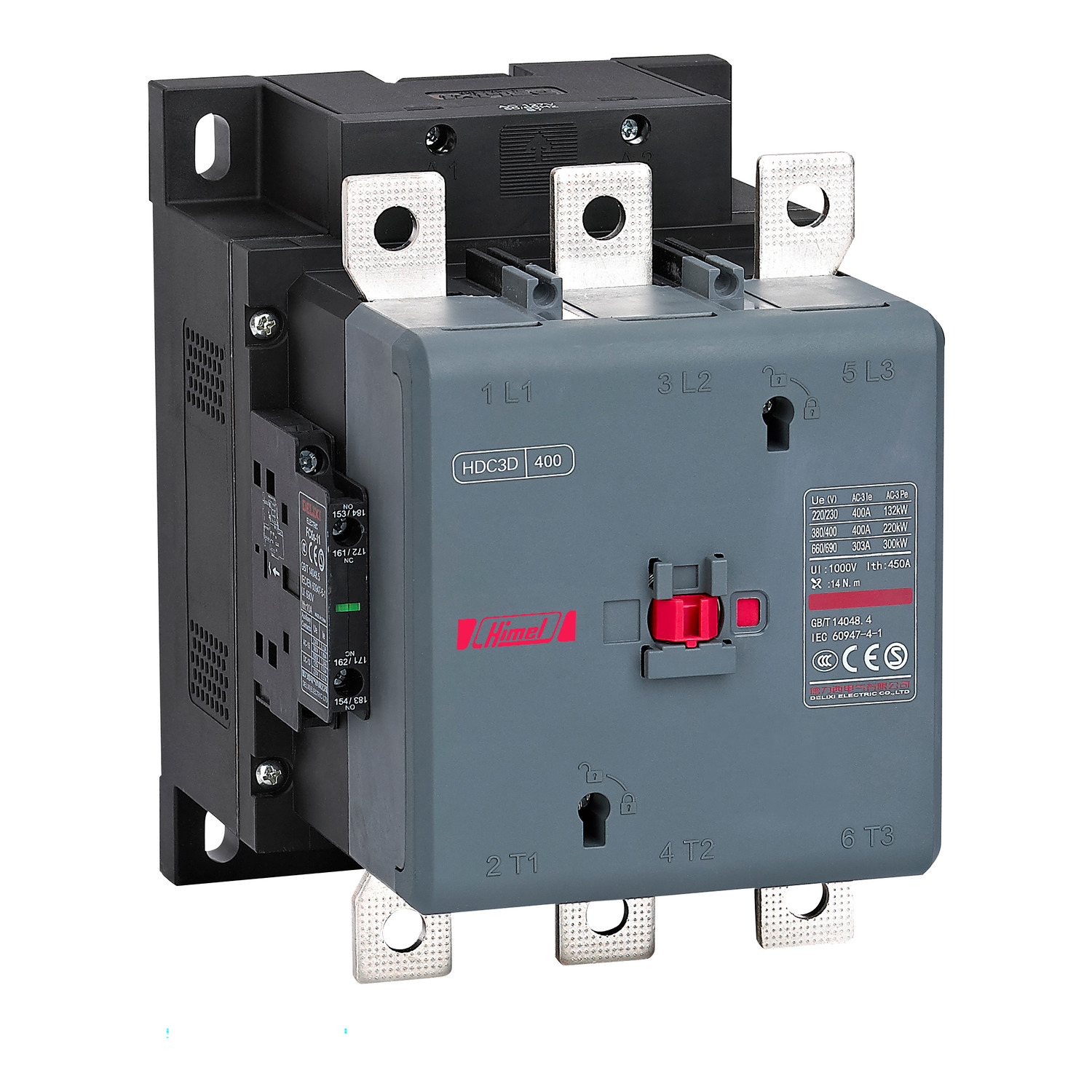

HDC3400KUE7
Contactor, HDC3-400, 2 NC+2 NO, AC/DC 100-250 V, 50 Hz
Main
Range of product
HDC3
Product or component type
Contactor
Poles description
3P
[Ith] conventional free air thermal current
450 A
Complementary
[In] rated current
400 A
[Uc] control circuit voltage
100...250 V AC 50 Hz
Auxiliary contact composition
2 NO + 2 NC
[Ui] rated insulation voltage
1000 V
Height
201.5 mm
Width
154 mm
Depth
208 mm
Environment
Pollution degree
3
Ambient air temperature for operation
-5…40 °C
Average ambient air temperature for operation
<= 35 °C (average over 24 hours)
Ambient air temperature for storage
-25…55 °C
Operating altitude
2000 m
Standards
IEC 60947-4-1
Product certifications
CB
CE
SEMKO
CE
SEMKO
IP degree of protection
IP20
Relative humidity
0…90 %
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
