HDC30911Q7

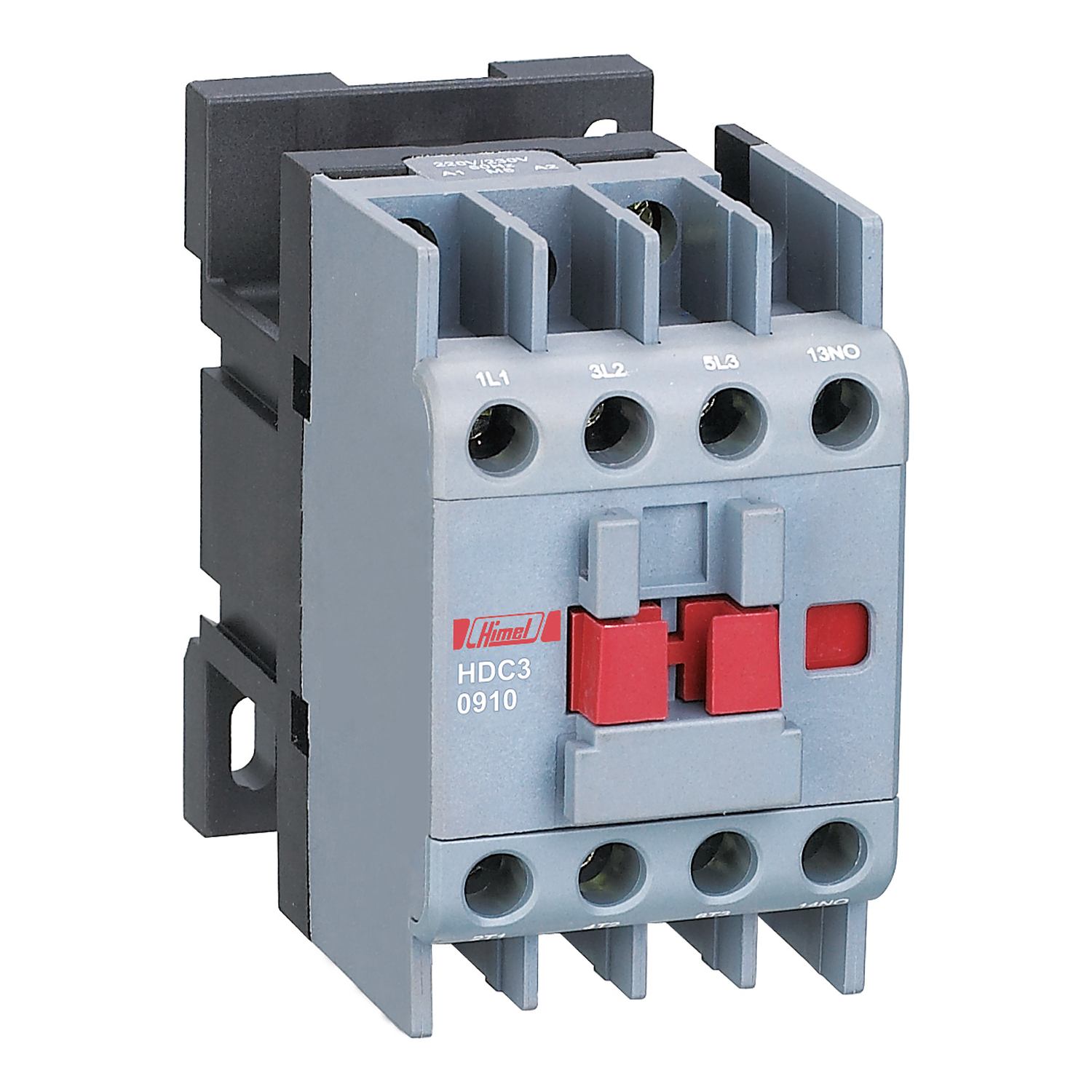

Contactor, HDC3-0911, 380/400 V, 50/60 Hz
Main
Range of product
HDC3
Product or component type
Contactor
Contactor application
Non-reversing
Poles description
3P
[Ith] conventional free air thermal current
25 A
Complementary
Utilisation category
AC-3
AC-4
AC-4
[In] rated current
9 A
[Uc] control circuit voltage
380/400 V AC 50/60 Hz
Auxiliary contact composition
1 NO + 1 NC
[Ui] rated insulation voltage
690 V
[Ie] rated operational current
9 A at 380/400 V AC-3
6.6 A at 660/690 V AC-3
3.5 A at 380/400 V AC-4
1.5 A at 660/690 V AC-4
6.6 A at 660/690 V AC-3
3.5 A at 380/400 V AC-4
1.5 A at 660/690 V AC-4
Motor power kW
4 kW at 380/400 V AC-3
5.5 kW at 660/690 V AC-3
2.2 kW at 380/400 V AC-4
1.1 kW at 660/690 V AC-4
5.5 kW at 660/690 V AC-3
2.2 kW at 380/400 V AC-4
1.1 kW at 660/690 V AC-4
Environment
Installation category
III
Pollution degree
3
Ambient air temperature for operation
-5…40 °C
Average ambient air temperature for operation
<= 35 °C (average over 24 hours)
Ambient air temperature for storage
-25…55 °C
Operating altitude
2000 m
Standards
IEC 60947-4-1
Product certifications
CB
CE
SEMKO
CE
SEMKO
IP degree of protection
IP20
Relative humidity
0…50 % at 0…40 °C
0…90 % at 0…20 °C
0…90 % at 0…20 °C
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
