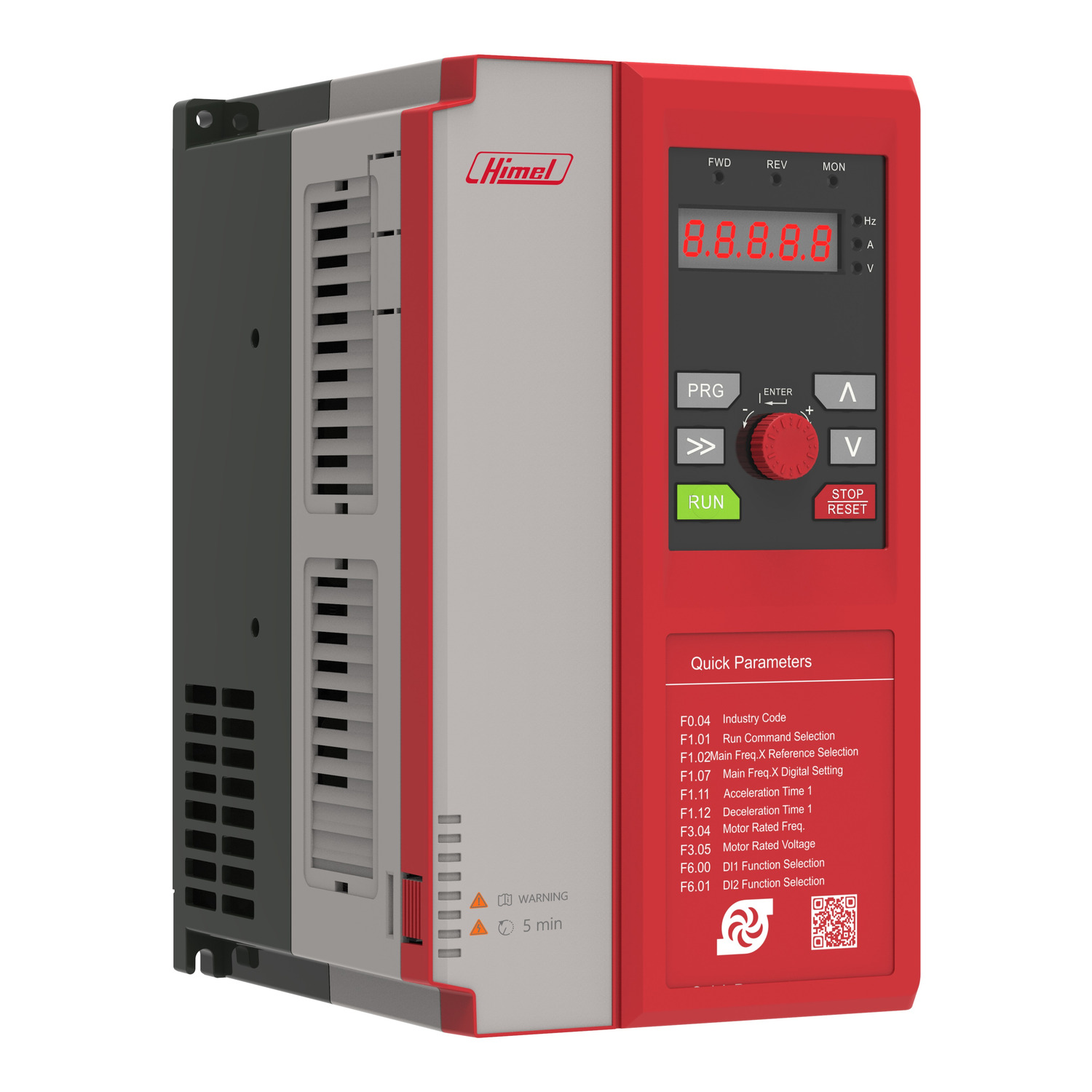

HAVSP4T0150P

Variable speed drive, SMART Pump, 15 kW, 380 V, 3 phase, normal duty
Product Datasheet

Main

Range of product
SMART-Pump
Product or component type
Variable speed drive
Product specific application
Pump
Fan
Chiller
Network number of phases
3 phases
[Us] rated supply voltage
380...440 V - 15...10 %
Supply frequency
50...60 Hz
Motor power kW
15 kW for normal duty
Motor power hp
20 hp for normal duty
Maximum transient current
38.4 A during 1 min (normal duty)
48 A during 1 s (normal duty)
57.6 A during 0 s (normal duty)
Asynchronous motor control profile
Sensorless vector control (SVC)
Voltage/frequency ratio (V/f)
Speed drive output frequency
0…599 Hz
Continuous output current
32 A
EMC filter
Class C3 EMC filter

Complementary

Product destination
Asynchronous motors
Function available
Multi-pump control
Dry run protection
Energy/flow calculator
Frost and condensation protection
Pump cleaning
Fire override mode
Energy saving mode
Type of cooling
Fan
Communication port protocol
Modbus
Regulation loop
Adjustible PID regulator with sleep mode
Acceleration and deceleration ramps
Linear adjustable separately from 0.01 to 3600 s
Frequency resolution
Digital input: 0.005/50 Hz
Analog input: 0.05/50 Hz
Analogue input number
2
Analogue input type
AI1 voltage: 0...10 V, impedance: 100 kOhm, resolution 0.01 V
AI1 current: 0...20 mA, impedance: 500 Ohm, resolution 0.02 mA
AI2 voltage: 0...10 V, impedance: 100 kOhm, resolution 0.01 V
AI2 current: 0...20 mA, impedance: 500 Ohm, resolution 0.02 mA
Discrete input number
5
Discrete input type
Programmable (DI1...DI5)
Programmable as pulse input (DI5)
Analogue output number
2
Analogue output type
AO1 voltage/current: 0...20 mA or 0...10 V
AO2 voltage/current: 0...20 mA or 0...10 V
Discrete output number
3
Discrete output type
configurable relay logic 250 V (5 A) for NO relay output circuit
configurable relay logic 250 V (3 A) for NC relay output circuit
configurable relay logic 24 V DC (3 A) for NO relay output circuit
configurable relay logic 24 V DC (3 A) for NC relay output circuit
open collector 9...30 V (50 mA)
open collector 9...30 V (50 mA) for pulse output
Output frequency
50 kHz for pulse output at DO2
Display type
5 digits 7 segments for 38 parameters
Device application
Speed control
Device composition
Built-in breaking unit
Type of installation
Indoor/outdoor
Control type
Manual using keypad
Using control terminal
Using serial port
Device mounting
Wall mounted
Enclosure
Flange
Speed accuracy
+/- 0.1 % of nominal speed
Protection type
Hammer effect
Overcurrent
Overvoltage
Undervoltage
Overheating
Overload
Short-circuit
Width
150 mm
Height
259 mm
Depth
181 mm

Environment

Relative humidity
0…95 % without condensation
Ambient air temperature for storage
-20…60 °C
Quality labels
CE
Operating altitude
<= 1000 m
IP degree of protection
IP20
Ambient air temperature for operation
-10…40 °C
Environmental characteristic
Dust resistant
Corrosive gas free
Oil and vapour resistant
Vibration resistance
5.9 m/s²

Packing Units

Unit Type of Package 1
PCE
Number of Units in Package 1
1
Language Format Size Date
User guide

icon Himel HAV-SP 0819

English

pdf

9.21 MB

02/08/2022
CAD

icon SP-4T0150

English

stp

18.94 MB

30/08/2021
User guide
pdf
SMART Pump user manual

English

pdf

9.21 MB

02/08/2022

CAD
pdf
SP-4T0150

English

stp

18.94 MB

30/08/2021
