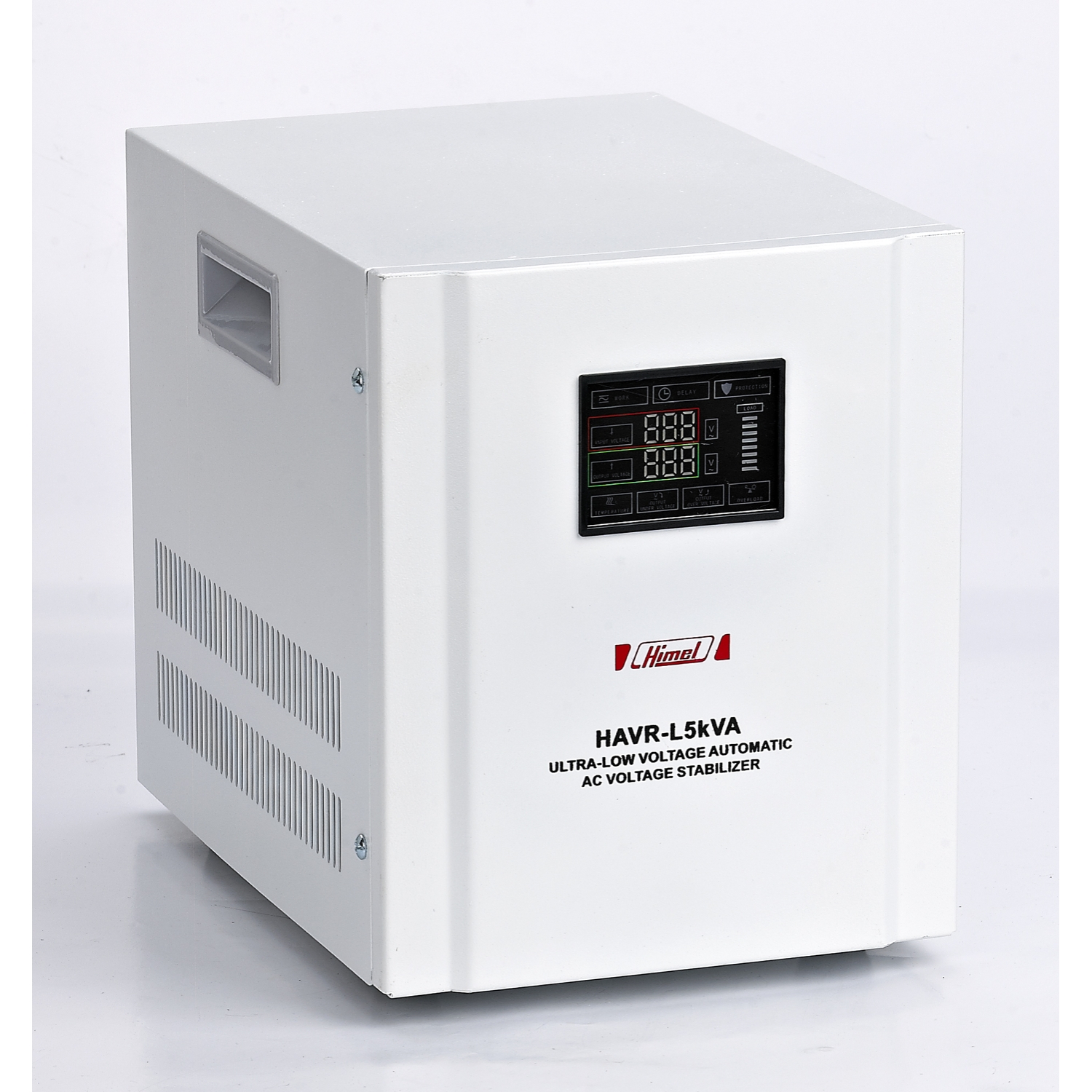

HAVRL5HBWD
Voltage stabilizer, HAVRL, relay type, 5 kVA, British type plug, 110/220 V output, 85..250 V input, with time delay
Main
Range of product
HAVRL
Product or component type
Voltage stabilizer
Technology type
Relay
Outlet standard
British
Provided equipment
User manual
Complementary
Rated power in VA
5 kVA
Minimum insulating resistance
5 MOhm
Maximum [In] rated current
22.7 A
Efficiency
90 %
Input voltage limits
85...250 V
Optional feature
Bypass
Cooling fan
Input undervoltage protection
Cooling fan
Input undervoltage protection
Protection type
Overvoltage
Overcurrent
Temperature rise protection
Time delay
Overcurrent
Temperature rise protection
Time delay
Display type
LED
Output voltage
220 V AC +/- 8 %
110 V AC +/- 10 %
110 V AC +/- 10 %
Network frequency
50/60 Hz
Environment
Ambient air temperature for operation
-5…40 °C
Relative humidity
0…90 %
Humidity storage
0…90 %
Operating altitude
0...2000 m
Storage altitude
0…2000 m
Standards
EN 61000-6-2
EN 61000-6-4
EN 61558-1
EN 61000-6-4
EN 61558-1
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
| Language | Format | Size | Date | |
|---|---|---|---|---|
| User guide | ||||
English |
1.22 MB |
29/11/2021 |
||
| Certificate | ||||
English |
0.05 MB |
01/09/2021 |
||
User guide
Troubleshooting Guideline document of voltage stabilizer
pdf
English
1.22 MB
29/11/2021
Certificate
CE LVD EMC HAVR M-2021-206-C67387 20210902
pdf
English
0.05 MB
01/09/2021
